GridTitan UPS Solutions by Industry

Every sector has unique power protection requirements defined by load profiles, ambient conditions, regulatory mandates, and acceptable downtime thresholds. GridTitan engineers systems matched to each.

Tier III / Tier IV Infrastructure

Data Centers & Colocation

Data center operators require UPS systems that deliver VFI-SS-111 classification with measured transfer times below 4 ms, active PFC to reduce upstream infrastructure oversizing, and modular architecture enabling capacity expansion without downtime. GridTitan modular UPS platforms scale from 100 kVA to 1.2 MVA per frame with N+1 or 2N redundancy configurations, and integrate natively with BMS via Modbus TCP and SNMP v3.

Typical capacity: 100 kVA – 1.2 MVA Redundancy: N+1, 2N, 2(N+1) Efficiency: 96.5% double-conversion

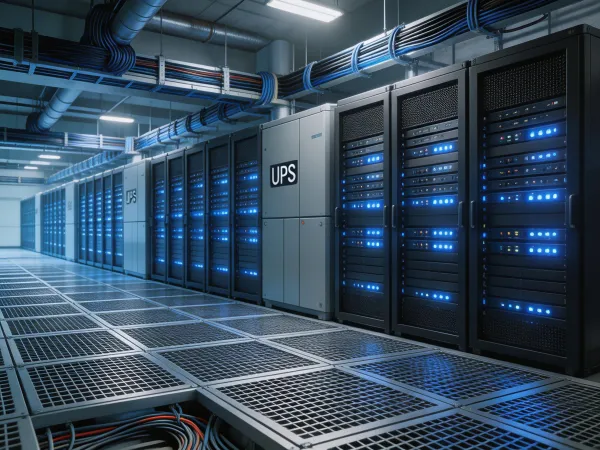

GridTitan UPS systems in Tier IV data center

Production Continuity

Industrial Manufacturing

Manufacturing environments subject UPS systems to demanding operating conditions: high ambient temperatures, airborne particulates, harmonic-rich loads from VFDs, and frequent voltage sags from heavy motor starting. GridTitan industrial UPS units feature conformal-coated PCBs, IP54-rated enclosures, and IGBT rectifiers that maintain PF > 0.99 even under non-linear load conditions — preventing upstream interference while protecting critical process control and SCADA systems.

Operating temp: -10°C to +45°C Protection: IP54 available Input THDi: < 3% with active PFC

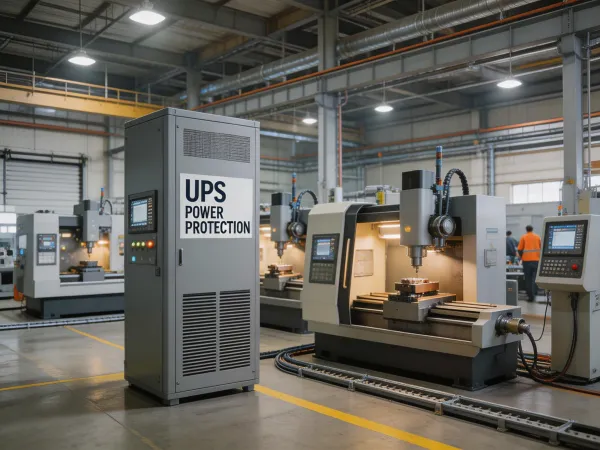

GridTitan UPS protecting manufacturing process control

Life Safety Systems

Healthcare & Hospitals

Hospital critical power systems must comply with NFPA 110, IEC 60364-7-710, and Joint Commission standards. GridTitan UPS systems provide Class 1 power quality per IEC 62040-3 for operating theatres, ICU monitoring, imaging equipment (MRI/CT), and pharmacy cold chain — with zero transfer time in VFI mode ensuring no interruption to life-critical loads.

Compliance: NFPA 110, IEC 60364-7-710 Output quality: Class 1 per IEC 62040-3 Autonomy: 15 min – 4 hours configurable

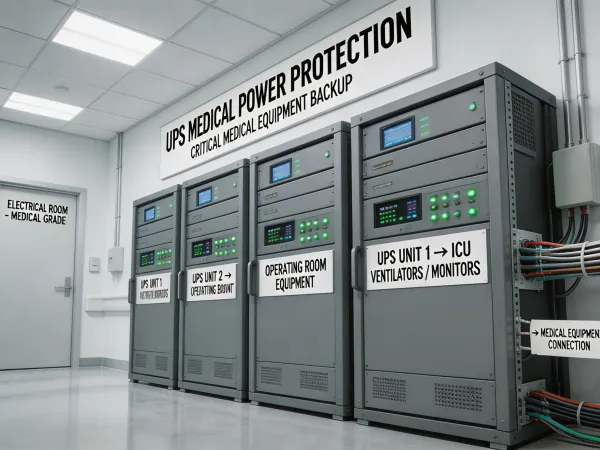

GridTitan UPS for hospital critical power systems

Additional Sectors

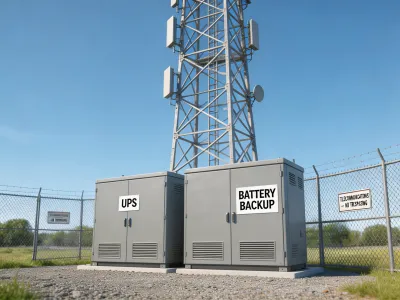

Telecommunications

48V DC rectifier systems and AC UPS for central offices, base stations, and fiber node shelters. Extended autonomy for remote sites.

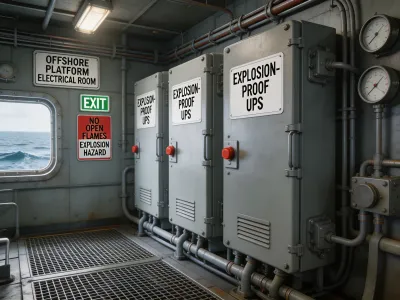

GridTitan UPS for oil and gas operations

Oil & Gas

ATEX/IECEx rated UPS for hazardous areas. Marine-grade enclosures, extended temperature range, and conformal coating for offshore installations.

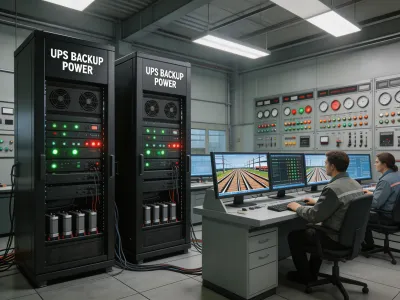

Transportation & Rail

UPS systems for signaling, CCTV, ticketing, and tunnel ventilation control. EN 50155 / EN 50121-4 EMC compliance for rail applications.

Discuss Your Industry-Specific Requirements

Our application engineers specialize in sector-specific power protection design. Provide your load profile and site conditions for a tailored UPS proposal.

Request a Specification
